FLOODPROOF YOUR HOME
ESTIMATING COSTS
Costs are dependent on variables including location, materials, type of construction, and risk exposure, that all contribute to real cost estimating valve.
DISCLAIMER
Consult licensed building professionals to determine the best floodproofing strategy for your home. Stay in touch with the design professionals that designed and constructed your system as an important resource when it is time for maintenance. FEMA does NOT recognize dry floodproofing as an acceptable strategy for residential structures. The building code requires buildings with residential occupancy to be wet floodproofed.
Ensure floodproofing is compliant with code: IBC (as adopted by the PRBC) structural provisions and ASCE 7, with materials certified by the American Society for Testing and Materials (ASTM) against high winds and flooding.
WHAT YOU NEED TO KNOW
Floodproofing prevents water from entering and damaging the home and critical mechanical, electrical and plumbing systems. There are two types of floodproofing:
Wet floodproofing
- Mitigates water damage to the home by allowing water to freely flow up to the DFE and allows unoccupied portions of a building to be flooded that are modified using flood damage- resistant materials and relocating key equipment and contents, reducing damages and losses.
Dry floodproofing
- Mitigates water from entering the home through its watertight structure. Use only in non-habitable commercial spaces of concrete multi-family buildings. Remember that dry floodproofing is active mitigation and subject to failure. It is an expensive option.
- Active – Requires human intervention for removable elements to be deployed before a natural disaster.
-
Passive – Fixtures and systems are automatically integrated into the structure, so they do not need to be deployed before a natural disaster.
Design Flood Elevation (DFE) is the level at which a building should be floodproofed. A building’s DFE is calculated based on FEMA’s Base Flood Elevation (BFE) plus an additional amount as a safety buffer which is called “freeboard” and is indicated in the 2018 building code (2’ or more)
The BFE is provided in the FEMA Flood Insurance Rate Maps (FIRMs), which includes wave effects. These maps do not take into account future sea-level rise from climate change. See “Resources.”
Hire a surveyor who will identify the building’s lowest habitable level and provide an FEMA Elevation Certificate (EC).
Design with the understanding that the portion of the building below the DFE will flood.
1. REPURPOSE ALL FLOORS
BELOW THE DFE
DESCRIPTION
- Floors located below the DFE can be used for storage, vehicle access or parking.
- Walls prone to contact with floodwater must be designed with flood openings or to break away under flood loads.
- Refer to FEMA technical bulletin TB-9 for information regarding breakaway walls.
- Note that walls must be certified as breakaway walls.
2. ELEVATE CRITICAL SYSTEMS
DESCRIPTION

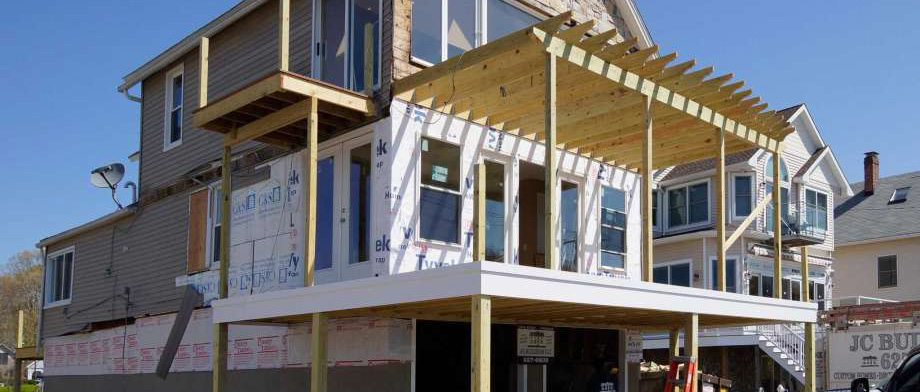

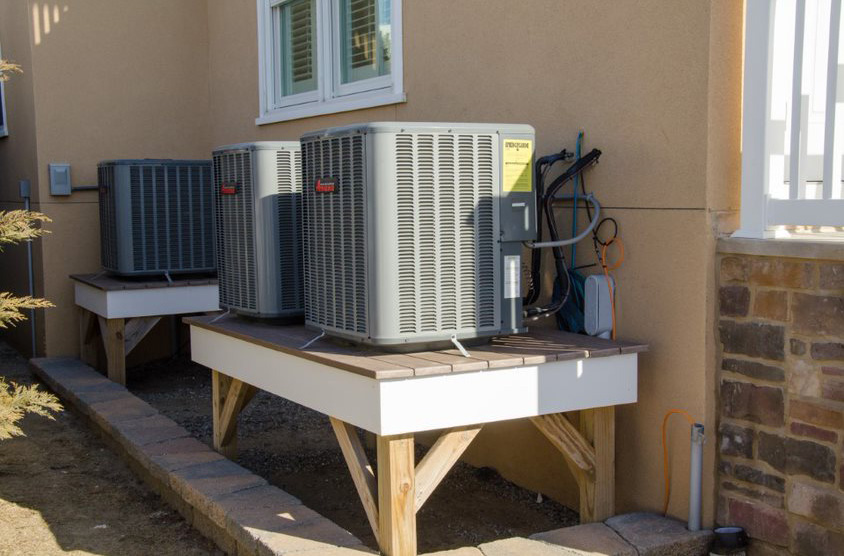

- Elevate interior and exterior systems like mechanical air handling, electrical, and plumbing at least 1 foot above the DFE to ensure their function during and immediately after a flood.
- Prevent direct contact with flood water and minimize/avoid damage.
- If relocating systems is not possible, they must:
- be designed and installed to prevent water from entering or accumulating within the components.
- resist hydrostatic, hydrodynamic and debris impact loads.

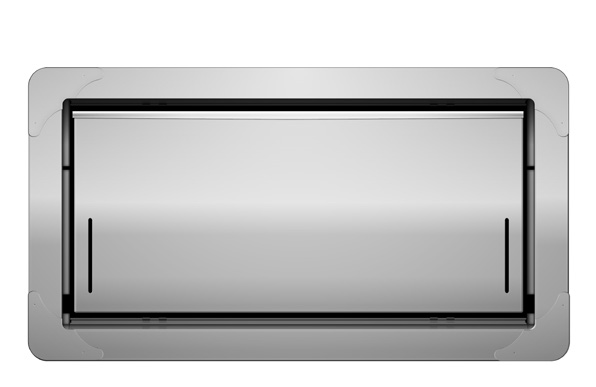

3. INSTALL FLOOD VENTS AND/
OR FLOOD OPENINGS IN WALLS
DESCRIPTION
- This will allow water to pass through perimeter walls and throughout the wet floodproofed areas.
- Locate openings below the BFE
- Bottom of openings are 1 ft or less above the ground level.
- Locate at least 2 openings on different walls of each enclosed area. If there are multiple enclosed areas, each area should have flood openings.
- 1 sq. inch of flood openings are needed for every 1 sq. foot of enclosed area.
- Openings should have a width and a length of at least 3 inches.
- Any louvers, screens, or covers on flood openings must allow automatic flow of floodwater in and out of the area.
- Doors and windows without installed openings do not count.

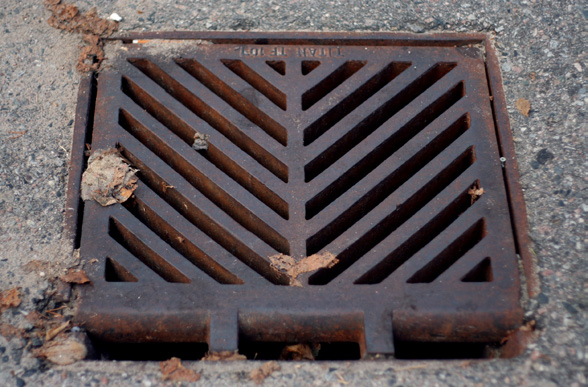

4. PROVIDE BACKWATER
VALVES FOR WATER, SANITARY
AND STORMWATER SYSTEMS
DESCRIPTION
- Backwater valves prevent wastewater from entering into the home’s plumbing system and flooding the house. Refer to Strategy 19 for more information.
- Harden pipes up to DFE to reduce pressure on pipes if there backlow occurs.
5. ELEVATE, SECURE, OR TIE
DOWN TANKS
DESCRIPTION
- Includes fuel and water tanks
- If they cannot be elevated above the DFE, secure and properly tie down.
- Ensure they are empty to avoid leaks and contamination.
6. USE FLOOD DAMAGE-RESISTANT MATERIALS UP TO THE DFE
DESCRIPTION
- Use stainless steel connectors and fastening systems.
- Materials must withstand direct and prolonged contact with water with flood water for 72 hours.
- The FEMA Technical Bulletin 2 (TB 2) of Flood Damage- Resistant Materials Requirements of 2008, approves only class 5 (highly resistant that can withstand exposure to water in movement) and class 4 (resistant but less durable under water in movement).
- Some class 5 materials include: concrete block, marine grade plywood, glass blocks, polyurethane formed in place and steel with waterproof adhesives.
- Install detachable mold- and moisture-resistant cladding at the bottom four feet using corrosion resistant screws.
- Design and build interior walls to vent/breath so cladding does not need to be removed for wall to dry
- Build cabinets off the floor above the flood line
- Other acceptable materials per TB2 include:
- Cement Board,
- Concrete,
- Non paper faced GWB,
- Marine grade plywood,
- Preservative treated lumber,
- Plastic lumber,
- Fiberglass,
- Stone
- Steel (painted/coated), closed cell insulation,
In a residential building, dry floodproofing can only be used in non-habitable spaces, e.g. lobbies, building manager office, utility rooms, retail, storage, etc. and is only permissible when the facility has a lowest floor commercial use.
 |
|
1
Design the structure to withstand hydrostatic, hydrodynamic and debris impact loads associated with the DFE and determined by a structural engineer.
2

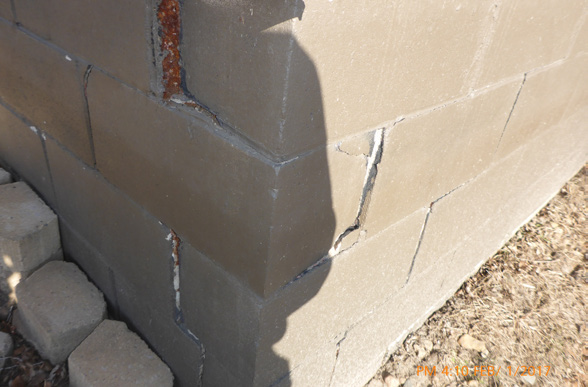

Seal all cracks and openings (except for flood vents or openings) below the DFE.
3
Install backwater control plugs in floor drains.
4

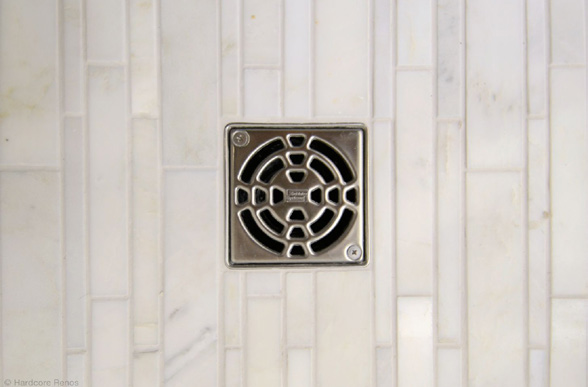

Use waterproof covers for vents, louvers located under the DFE and install them before a natural disaster. Permanently seal floor drains
5

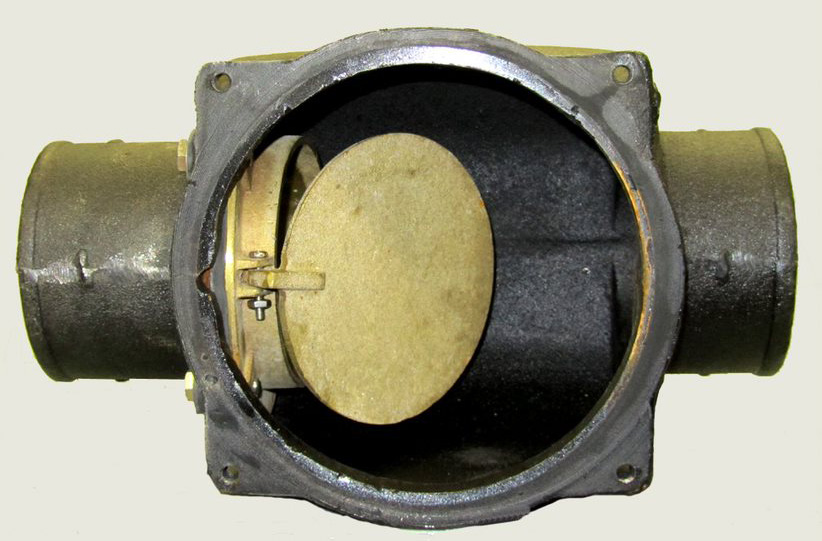

Install sewer backwater valves.
Cap house trap to prevent water from flowing into the home if main sewer is backed up.
6
Install a sump pump at the lowest point of the home.
7

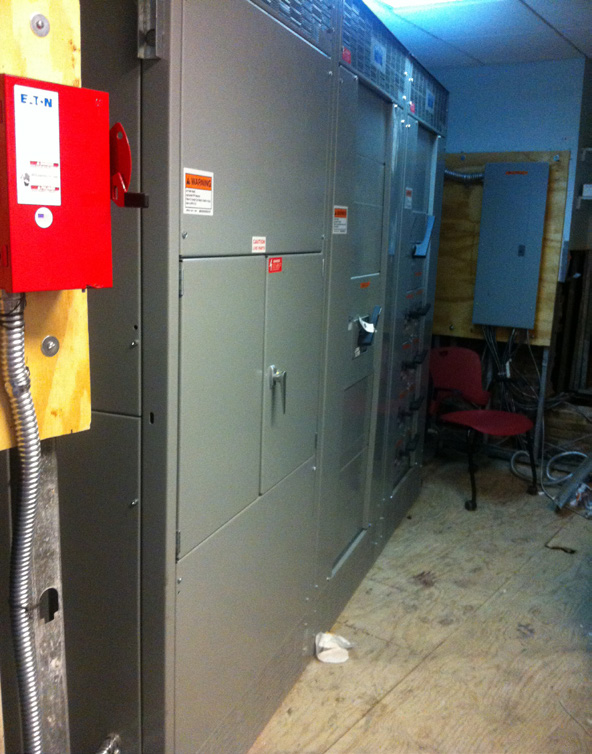

Protect electrical equipment that cannot be relocated with waterproof enclosures.
8
Permanently replace first floor doors with flood doors and install removable flood gates over entryways.
9

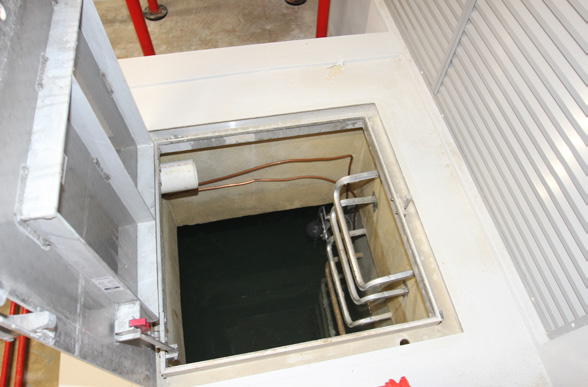

Install waterproof hatch doors on sidewalk hatches.
10
All power sockets must be at least 18 in above the floor or projected flood level. Prevent damage to the circuits from flood water.
11
Use a trench drain at the base of the stairs to reduce seepage from a non-protected hatch.
